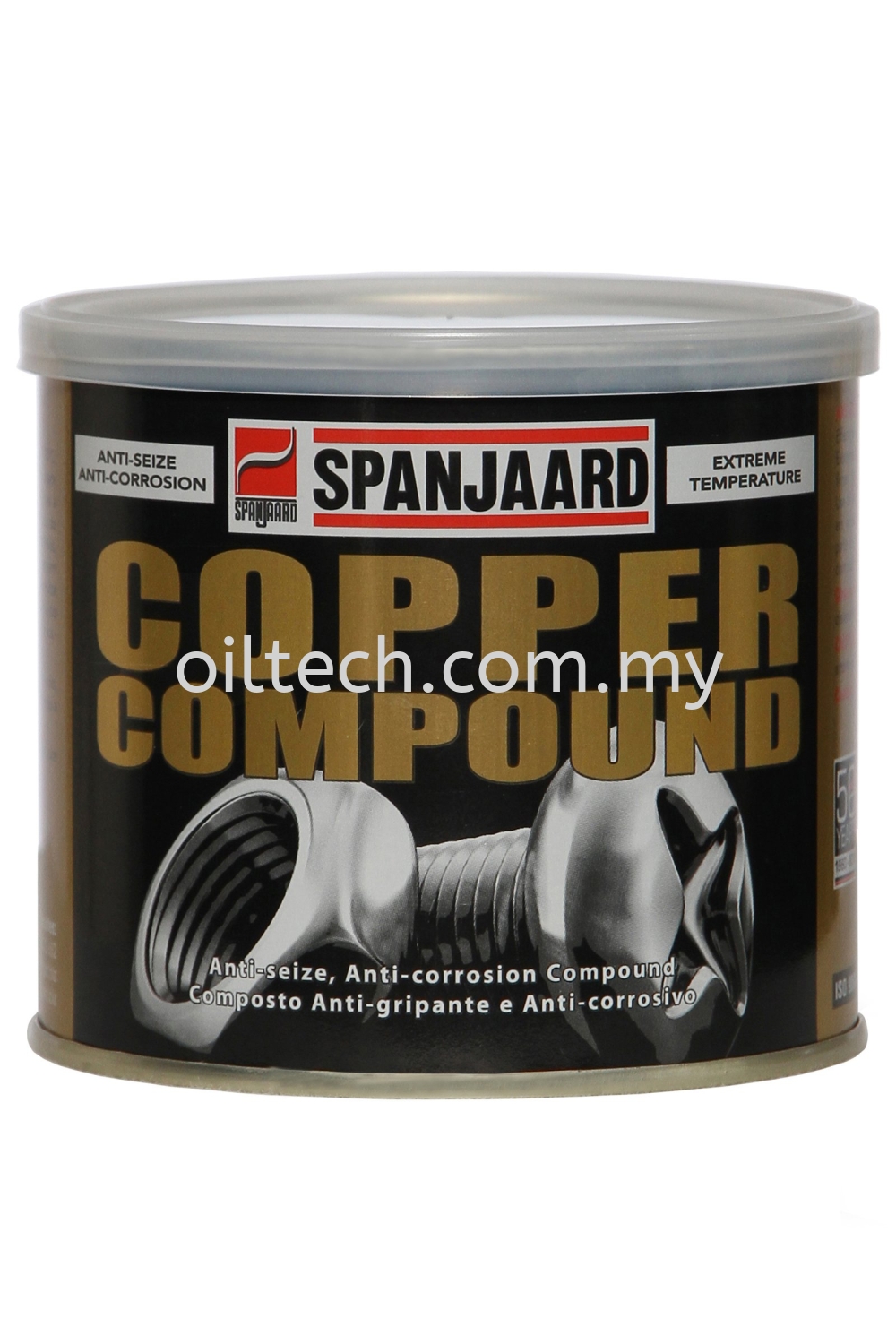

Copper Anti Seize - Spanjaard Malaysia
Category: Anti Seize
Specifications
SKU
SPAN-CopperCompound-500Gcn
Weight(gram)
500
Dimension
10 cm (Length) x 10 cm (Width) x 20 cm (Height)
Details
Spanjaard Copper Compound
Product Description
Copper anti seize is for the assembly of all threaded connections subject to high temperatures such as:- spark plug threads, cylinder head and exhaust manifold studs, high temperature and/or corrosive environments. It is also suitable for application to gaskets and packing. For all these applications, the products make dis-assembly possible without welding or seizure.
Benefits
Copper anti seize helps to prevent two major seizing problem which is called galling and fretting. Galling is when two metals are in contact and the friction produce heat high enought to weld the metals together. This led to the breakage or torn of the thread during tighten or loosen the nut. Fretting happened when two metals in contact experiencing oscillation and cause rupture of the material. Fretting always caused the metals to fatigue crack and decrease the fatigue strength of the materials.
Product Description
Copper anti seize is for the assembly of all threaded connections subject to high temperatures such as:- spark plug threads, cylinder head and exhaust manifold studs, high temperature and/or corrosive environments. It is also suitable for application to gaskets and packing. For all these applications, the products make dis-assembly possible without welding or seizure.
Benefits
Copper anti seize helps to prevent two major seizing problem which is called galling and fretting. Galling is when two metals are in contact and the friction produce heat high enought to weld the metals together. This led to the breakage or torn of the thread during tighten or loosen the nut. Fretting happened when two metals in contact experiencing oscillation and cause rupture of the material. Fretting always caused the metals to fatigue crack and decrease the fatigue strength of the materials.
Application Insutruction
The bulk versions should be applied by brush or finger.
Typical Properties
Typical Properties
| TYPICAL PROPERTIES | COPPER ANTI-SEIZE |
| Consistency | NLGI No. 2 |
| Penetration (1/10mm at 25°C, 60x) ASTM D217 | 275 |
| Penetration change (10 000 x) | 35 |
| Dropping point | None |
| Timken OK load, kg (ASTM D2509) | >25 |
| Copper corrosion test (ASTM D130) | 1b |
| Base oil viscosity at 40°C, cSt (Brookfield) | 100 |
| Max operating temperature as thread/anti-seize lubricant | 1 100°C |
| Key metallic component | Copper |
| Colour | Golden |
| Exceeds requirements of MIL-A-907E (US Military Spec) | Yes |
| Average torque to loosen threaded connection after being subject to: | |
| 565°C | 70Nm |
| 1 100°C | 200Nm |
| Co-efficient of friction at 200N | 0.140 |
| Compliance with latest First World Environmental Legislation | No |
| Resistance to contact with Ammonia | None |
| Resistance to Electrolytic Galvanic Corrosion | None |
| Suitable for use on Austenitic/Stainless Steels | No |
| High load, slow-moving lubricating properties | Excellent |
| Protection against corrosion of battery terminals | Excellent |
| Apply to back of disc pads to eliminate squeal | Yes |
| Contents of aerosol packs | 400 ml |
| Packing in tubes | 100g |
| Other packs (500g, 5kg, 15kg, 50kg & 180kg) | Yes |
Available Packing
Contact our sales consultant in area:
Malaysia, Selangor (Klang, Puchong, Shah Alam, Subang), Kuala Lumpur (Sungai Buloh), Negeri Sembilan (Seremban), Melaka, Johor (Johor Bharu, Muar, Batu Pahat), Pahang (Temerloh, Kuantan), Kelantan (Kota Bahru), Terengganu (Kuala Terengganu), Perak (Ipoh), Kedah (Sungai Petani), Perlis, Penang (Bukit Mertajam, Butterworth, Seberang Prai), Sabah (Kota Kinabalu), Sarawak (Kuching), WP Putrajaya, WP Labuan, Indonesia, Singapore, Thailand, Philippines, Vietnam, Laos, Myanmar, Cambodia, Brunei.

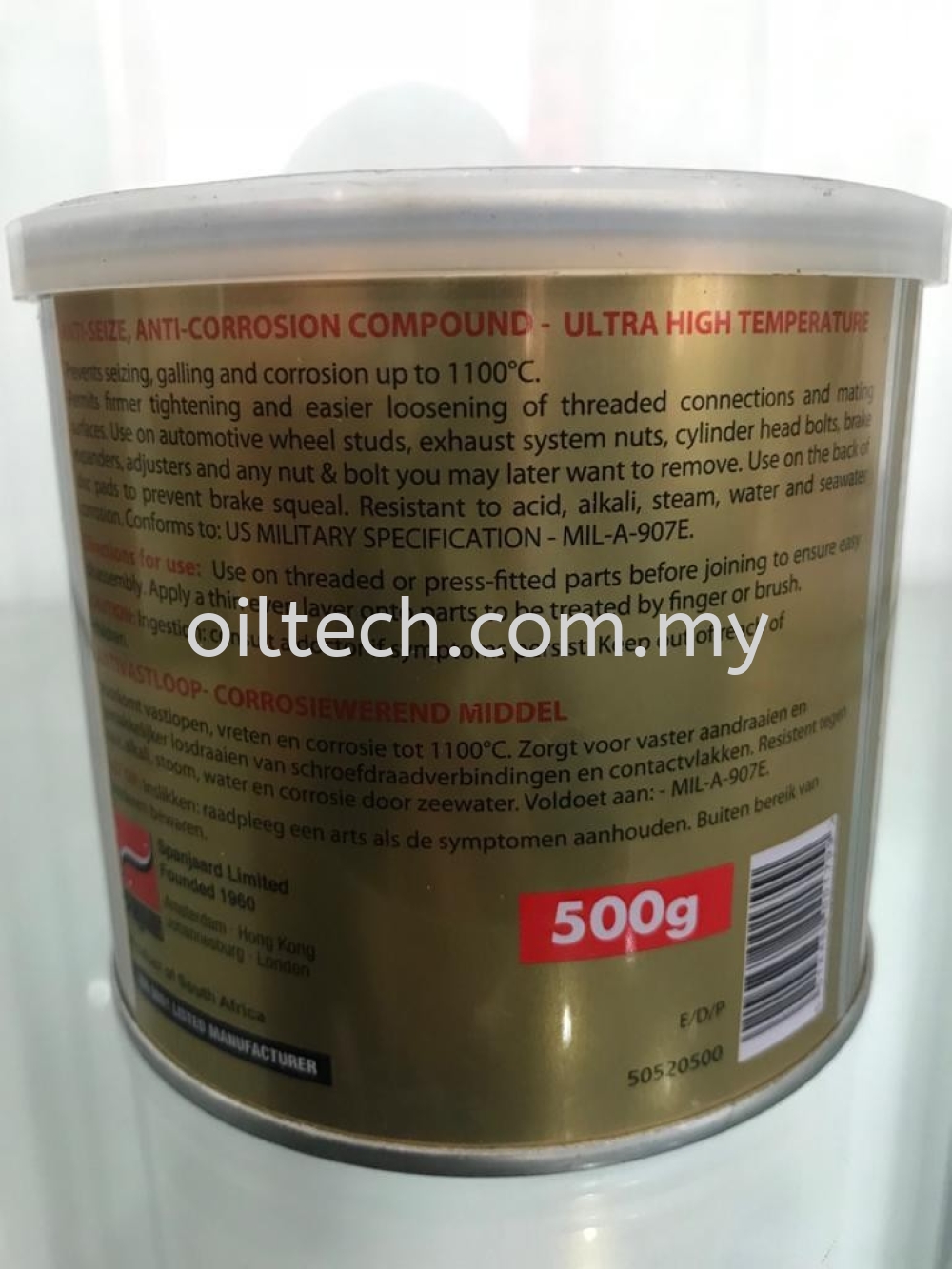

500 gram can
